MTEL Birdy Viewer Updates:

27/8/2018    Birdy Viewer 1.6 (8)

This is a medium release.

1. Added Encoder connection
2. Added messaging to encoders on line

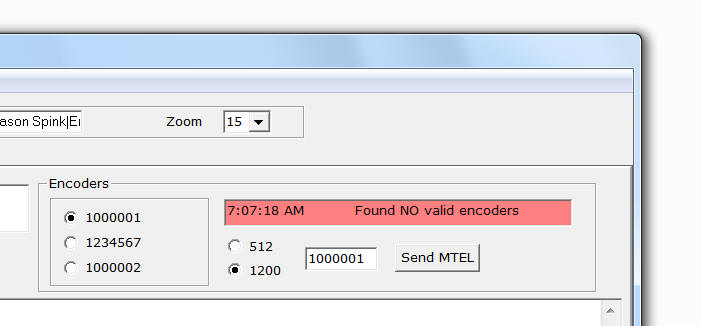

This is the new encoder section.

The box on the left contains 3 commonly used capcodes. These are stored in the database.

The banner will indicate if the MAC controller has a valid encoder connected.

Any capcode can be sent using the text box under the banner and selecting the baud rate. Then click Send MTEL button.



The capcodes are in the Startup database Baud1 matches CC1 etc.

StartUp

Key_Description	Key_Data	Description
Baud1	1200
Baud2	512
Baud3	1200
CC1	1000001
CC2	1234567
CC3	1000002



31/7/2017    Birdy Viewer 1.6 (1)         Birdy Viewer Database

This is a medium release.

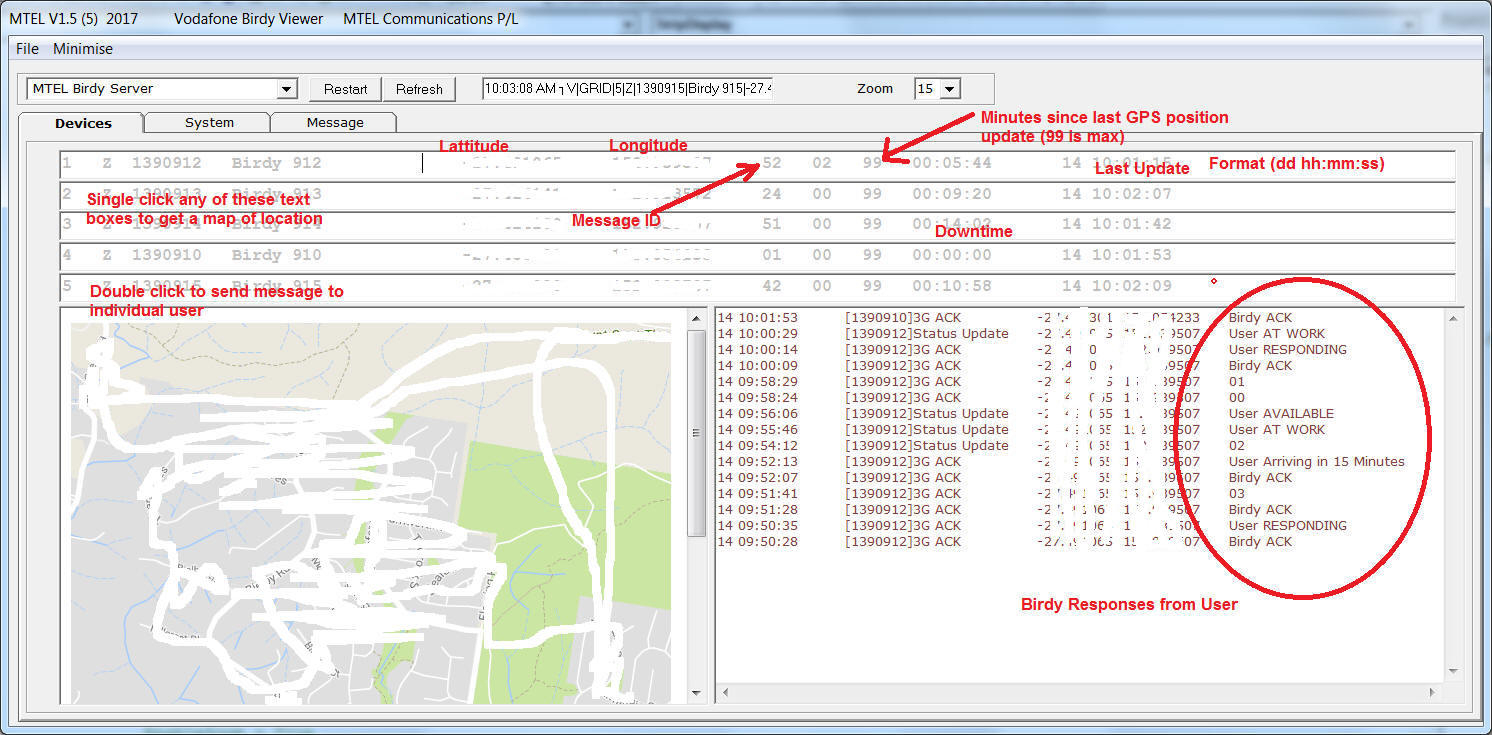

1. Added Message Information
2. Added Messaging to a group

31/7/2017    Birdy Viewer 1.5 (2)

This is a medium release.

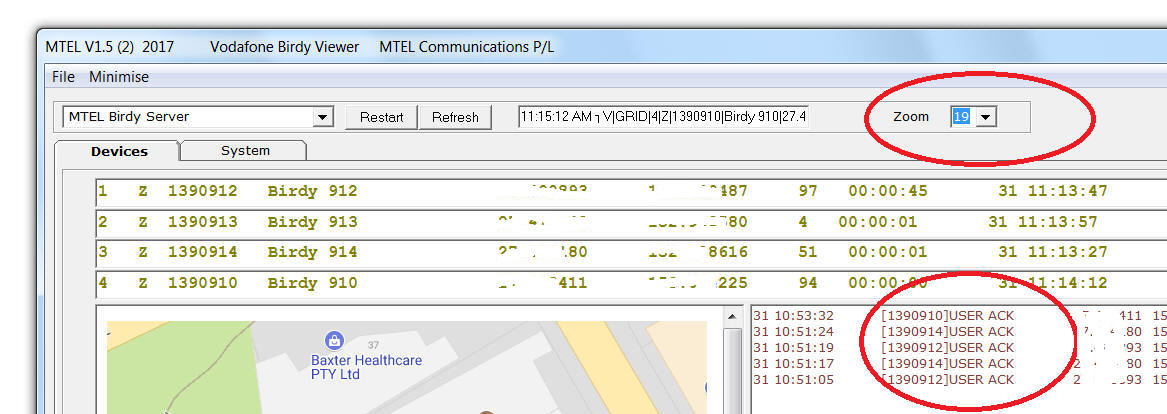

1. Added Zoom Control.
2. Added Log

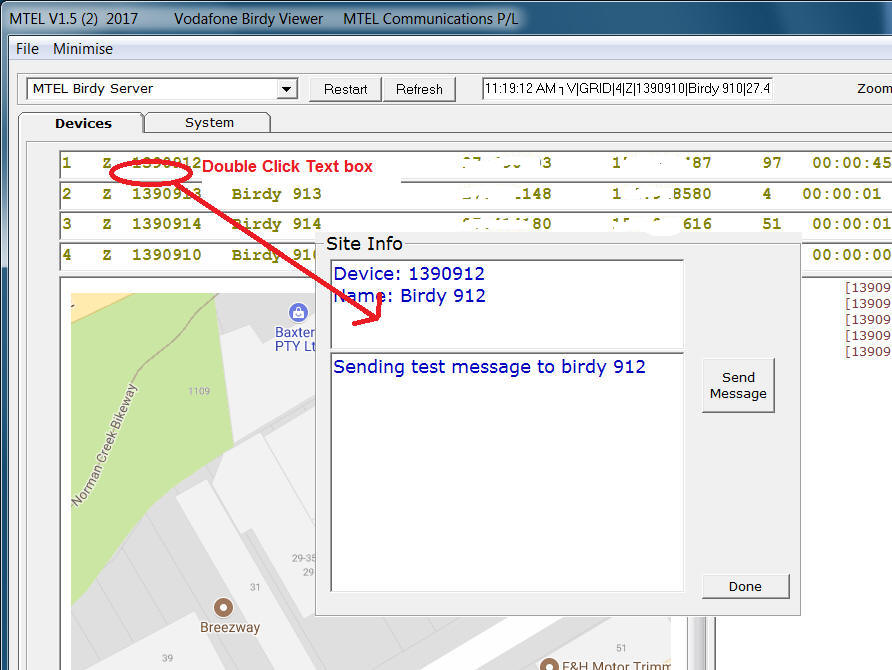

3. Added Messaging to individual Birdies

26/7/2017 4:54pm    Birdy Viewer 1.5 (1)

This is a minor release.

26/7/2017    Birdy Viewer Database

This is a minor release.

26/7/2017    Birdy Viewer 1.4 (141)

This is a minor release.
