MDSGroups Table:

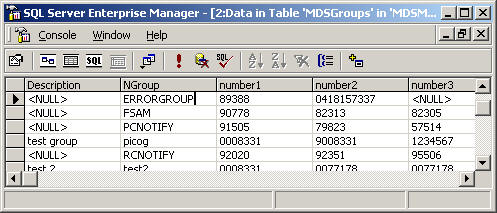

This list generates additional messages for each member of the group. When messages arrive at the Switch they are first tested against this group list. If the number in the message is the same as a group member in this list then the same message is sent to all members of that group. e.g. "FSAM" group in the table below will send messages to 90778, 82313, 82305 etc.

The unique key in this table is "NGroup".

Note the group name can be alpha-numeric as can its members. As a general rule though the members are numeric as these numbers are passed to the telecommunications carriers who at this point only use numeric identifiers.

In other words the fields "number1" , "number2" etc are the actual numbers sent to the paging carriers and mobile phone carriers.
