8/1/2024

Click here to download MTELPage 2024 V6.2 (50)     Official Release

This is a minor release. Problem queing messages not expired.

1. fixed queue to look for empty queue slots not just the current pointer
2. queue size increased to 201
3. added timer of 10 minutes to expire messages left in the queue.
4. added resend to relay if the messages fail on first attempt.
5. moved to exec 2024
6. added Group status and PDEC_NOT_SENT_Q and others to ELog.

15/12/2023

Click here to download MTELPage 2023 V6.2 (39)     Official Release

This is a minor release. Problem not adding associated messages.

1. fixed database closed in special pstn. test and reopen when required

15/12/2023

Click here to download MTELPage 2023 V6.2 (38)     Official Release

This is a minor release. Problem not adding associated messages.

1. fixed database closed in pstn. test and reopen when required
2. added logging if cant add a message to local que when hit Send button. QUESIZE =101

This is the number of simultaneous messages waiting for a response from the message networks, MDS, MTEL Cloud etc.

21/11/2023

Click here to download MTELPage 2023 V6.2 (37)     Official Release

This is a medium release.

1. fixed network field in booked
2. move periodical to c99
3. added error handling in timer booked

21/11/2023

Click here to download MTELPage 2023 V6.2 (36)     Official Release

This is a medium release.

1. added notification pop up on MDS Editor changes
2. added logging on startup for groups
3. fixed backup logging
4. changed Picocell tab to Notification. This now logs all notifications
5. fixed messages back to comms in Intercomms tab. (Only after next version of PageDirect.)

16/11/2023

Click here to download MTELPage 2023 V6.2 (30)     Official Release

This is a medium release.

1. changed PBooked temp database

15/11/2023

Click here to download MTELPage 2023 V6.2 (28)     Official Release

This is a medium release.

1. fixed client database lock file on moving periodical to booked
2. added LIKE search style on contacts name
3. cleanup on intercomms

2/11/2023

Click here to download MTELPage 2023 V6.2 (23)     Official Release

This is a medium release.

1. cleanup of Intercomms database open and close fixes
2. made c99 only insert incoming intercom and info message data

31/10/2023

Click here to download MTELPage 2023 V6.2 (22)     Official Release

This is a medium release.

1. cleanup of Intercomms. added clear on send option.
2. fixed adhoc super groups
3. fixed client reload after sending a message
4. added supergroup type to special info in enter message and ViewGroup
5. removed CAD message entry

31/10/2023

Click here to download MTELPage 2023 V6.2 (21)     Official Release

This is a medium release.

1. added new tables to Mtelmess Infomessages, Intercomms
2. fixed upload of infomessages on startup. Messages now in database table
3. fixed client reload after sending a message
4. added more functionality to Intercomms.
5. new empty mtelmess database containing new tables
6. removed OADMessages table
7. filtered periodical pop to c99 only



empty mtelmess database

Click here to download MTELPage 2023 V6.2 (13)     Official Release

This is a minor release.

1. added extensive logging to booked messages
2. fixed periodical and booked for messages from other databases
3. fixed check box for supergroups

19/10/2023

Click here to download MTELPage 2023 V6.2 (12)     Official Release

This is a minor release.

1. added more debug to periodical
2. added more logging on periodical
3. activate button is live all the time for testing
4. fixed grids in booked and pbooked
5. stretched date time fields in periodical
6. removed CAD messages into history

18/10/2023

Click here to download MTELPage 2023 V6.2 (10)     Official Release

This is a major release.

1. fixed booked and pbooked for supergroups
2. fixed option buttons for contacts filtering
3. removed redirect button in messages for supergroups
4. added FS to contacts list for super groups

17/10/2023

Click here to download MTELPage 2023 V6.2 (9)     Official Release

This is a major release.

1. added Intercomms tab
2. fixed SpecialInfo data to be displayed
3. fixed padding of special info
4. fixed messaging from super groups filter

27/9/2023

Click here to download MTELPage 2023 V6.2 (5)     Official Release

This is a major release.

1. fixed Region Filter
2. added CAD messages from USRACK to the message history
3. changed super group colours

28/8/2023

Click here to download MTELPage 2023 V6.2 (3)     Official Release

This is a major release.

1. added Region Filter to Registry
2. removed all code for Q01
3. added Super Groups, display and messaging
4. added CAD messages to History list
5. removed all picocell testing
6. cleaned up mobile network selection



18/10/2021

Click here to download MTELPage 2021 V5.1 (9)     Official Release

This is a minor release.

1. Fixed bug in Canned message when user hits Cancel button in the edit mode.
2. Local and Global Canned list is now remembered from last selection.
3. Searching can now be started by hitting the enter key. This can speed up the search.

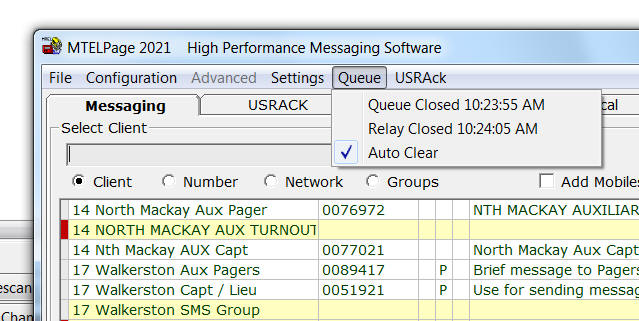

4. Auto Clear from the queue can be deselected in Menu. Stops MTELPage from changing focus.

   See Diagram below

6/9/2021

Click here to download MTELPage 2021 V5.1 (4)     Official Release

This is a minor release.

1. Fixed Group message cleared when the form is resized.





2/9/2021

Click here to download MTELPage 2021 V5.1 (3)     Official Release

This is a medium release.

1. Fixed Canned Message Cancel command
2. Fixed Option button default to Client.

24/8/2021

Click here to download MTELPage 2021 V5.1 (2)     Official Release

This is a medium release.

1. Fixed search method. Moved from event to timer based search.
2. removed fgContacts, now an array of 3000 elements.
3. added search labels
4. contacts load looks for null fields
5. fixed delete key in Periodical

28/7/2021

Click here to download MTELPage 2021 V5.0 (43)     Official Release

This is a minor release.

1. Fixed ADHOC
2. Cleanup of Periodical and Booked. Added Delete buttons.

20/7/2021

Click here to download MTELPage 2021 V5.0 (40)     Official Release

This is a medium release.

1. Changed MTEL Licence
2. added 2 registry keys; RedirectToQ and AddMobiles

   AddMobiles remembers the selection and saves the value on shutdown(default is False)

   RedirectToQ enables messages failed in R01 to be redirected to Q01(default is False)



3. Loads Site Info from the logs to give history of site problems
4. Added tests for empty messages
5. added Reload the network list if the default file is reloaded
6. If queue is empty and there are no errors then the application will return to the Contacts page after 5 seconds
7. Removed automated picocell testing
8. Fixed the display of Periodical messages



14/6/2021

Click here to download MTELPage 2021 V5.0 (38)     BETA ONLY

This is a minor release.

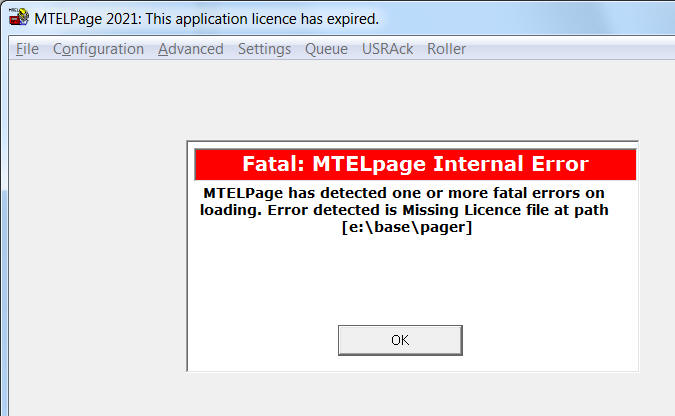

1. Changed MTEL Licence error messages to be shown in msg box (see below)
   1. Message for no licence file
   2. Message for expired licence file



2. Fixed Reloading of contacts when using BY Num
3. Fixed performance of reloading contacts
4. improved centering of message entry frame
5. fixed database error when licence has expired on shutdown

13/6/2021

Click here to download MTELPage 2021 V5.0 (37)     BETA ONLY

This is a minor release.

1. Changed MTEL Licence file encryption.

    There is a new licence file with MTEL Encrypted licence.

11/6/2021

Click here to download MTELPage 2021 V5.0 (35)     BETA ONLY

This is a medium release.

1. Implemented new MTEL Licence file encryption.
2. Cleaned up USRACK display
3. Removed dependence on CHILKAT library.

    There is a new licence file with MTEL Encrypted licence.

26/5/2021

Click here to download MTELPage 2021 V5.0 (29)     BETA ONLY    MTELPage 2021 ZIP

This is a medium release.

Installation Checklist:

1. Add Canned table to the default contacts database. (This is the global canned list for all the MTELPages)
2. Add 3 additional fields to the default Contacts database.

   SMS_G      type Yes/No

   PICO          type Yes/No

   APP            type Yes/No



3. Add the licence file to the pager directory.



26/5/2021

Click here to download MTELPage 2021 V5.0 (28)     BETA ONLY

This is a medium release.

1. clean up Periodical Booked

25/5/2021

Click here to download MTELPage 2021 V5.0 (26)     BETA ONLY

This is a medium release.

1. added Periodical Booked
2. added licence file. To be put in server "pager" directory.

        MTEL Licence

5/3/2021

Click here to download MTELPage 2021 V5.0 (11)

This is a minor release.

1. minor cleanup of version V5.09

4/2/2021

Click here to download MTELPage 2021 V5.0 (9)

This is a minor release. More documentation here

1. Removed Roller
2. Added Date Time to Log
3. Fixed Default File in Menu
4. Moved Global Canned to Contacts database

3/2/2021

Click here to download MTELPage 2021 V5.0 (7)

This is a major release. More documentation here

The purpose of this release is to upgrade MTELPage USRACK and additional small functionality.

1. Moved to Tabs away from buttons
2. MTELPage is resizable
3. Major upgrade to USRACK tab
   1. added Message, and timer
4. Cleaned up Periodical and Booked views
5. Added GLOBAL Canned as well as local
6. Fixed networks in System Information
7. Removed OAD
8. Removed mobiles from Contacts list for faster loading and clearer list

12/10/2017

Click here to download MTELPage 2017 V4.5 (23)

This is a minor release.

The purpose of this release is to allow multiple instances of MTELPage to co-exist in the same workstation.

It is important that the queue and relays ports are unique for all applications. These should be checked in "mtelpagesysCURR.mdb" before starting the application.

Also change the Client Id to a unique number.

Registry

Key_Description	Key_Data
QUEAddress	192.168.0.20
QUEPort	8099

Registry

Key_Description	Key_Data
RelayAddress	192.168.0.20
RelayEnabled	True
RelayPort	7048





1. Changed file sub system from c:\mtelsys to the current directory.

   The application detects the "mtelpagesysCURR.mdb" file is in the current directory and

   changes the temp contacts file to be located in the current directory. On startup

   the ~~localclients.mdb file is copied to the current location. The file locations

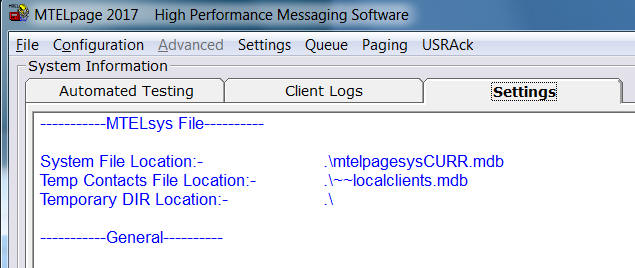

   can be checked by clicking Client Log button and go to Setting tab.





2. If the current file is missing then MTELPage uses the normal c:\mtelsys directory.





21/4/2017

Click here to download MTELPage 2017 V4.5 (21)

This is a minor release.

Bug Fix:

1. Check the window size before any resize event.
2. Added dynamic screen update for USRAck on starup.
3. Added MessageStarted to the Display Timer. This stops accidental jump to UsrAck if the user is sending a page.

10/4/2017

Click here to download MTELPage 2017 V4.5 (18)

This is a minor release.

Bug Fix:

1. Repaired Database error when the USRAck updated
2. Fixed the jump to the USRAck display when sending a message
3. Added the menu item Set AutoShow. The setting is stored in the settings and saved when MTELPage is closed.

29/3/2017

Click here to download MTELPage 2017 V4.5 (8)

27/3/2017

Click here to download MTELPage 2017 V4.5 (7)

This is a medium release. see Current Versions for more details.

There is an upgrade to the empty mtelmess.zip file. This will allow longer logs to be stored. Current log length per record is 255 characters.



18/8/2016 11:00am

Click here to download MTELPage 2016 V4.4 (456)

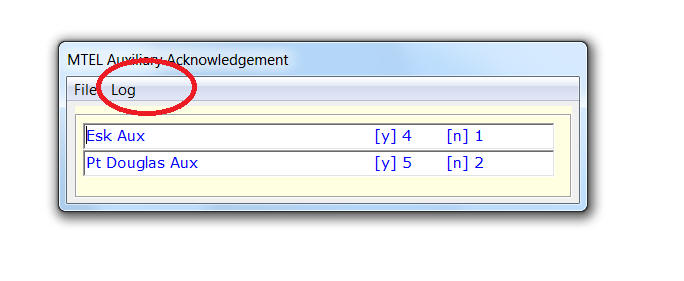

This is a minor release. Fixed Auxiliary Acknowledgement display when maximised.

18/8/2016

Click here to download MTELPage 2016 V4.4 (454)

This is a minor release. The Assistance button will now populate the message from the Info label in the AssistanceComms.

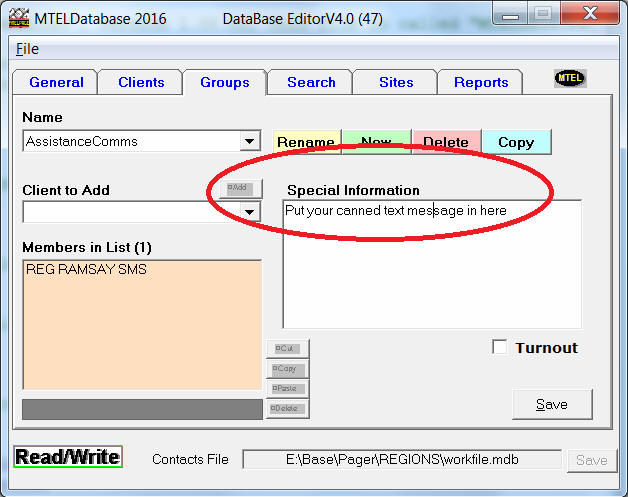

Open MTELDatabase and go to Assistance Group and put your canned message in the Special Information.

When you click on the Assistance button then this is the text that will appear in the Message box.





5/8/2016

Click here to download MTELPage 2016 V4.4 (453)

This is a minor release. The Auxiliary Acknowledgement window has a Log menu item to turn on and off the log.

It will remember the window size even if the application is restarted.



12/7/2016

Click here to download MTELPage 2016 V4.4 (452)



11/7/2016

Click here to download MTELPage 2016 V4.4 (451)

                                    empty mtelmess.zip



This is a medium release. It has been compiled with the new Runtime Extended OCX and DLL's

The new empty mtelmess.mdb is required for the new version.



New Functions:

1. Periodical and Booked Calendar changes. The old calendar control is no longer supported by Microsoft.
2. Improved USR ACK display, includes responder names.
3. Added Assistance Button

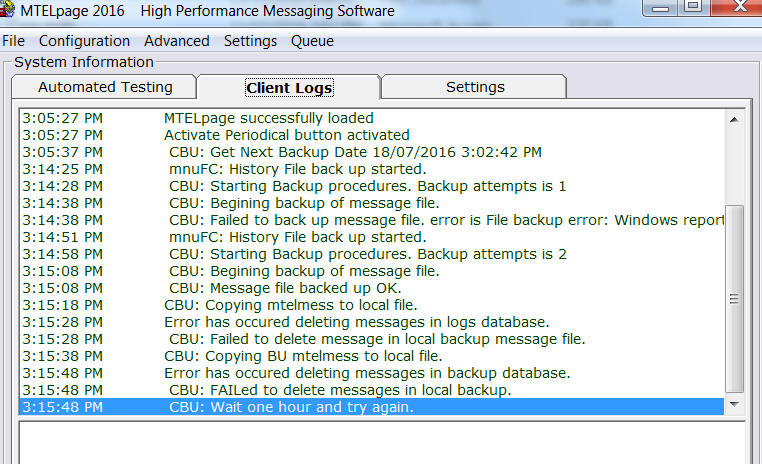

4. Backup procedures changed. Only 3 attempts then stopped.
5. Backup procedures messages sent to MTEL via direct host gate.

For more detail see MTELPage 2016



Adding in the new database:

The new empty mtelmess.mdb has the new USRACK table.

To put the new table in the current mtelmess file;

Copy the new empty_mtelmess to the System directory.

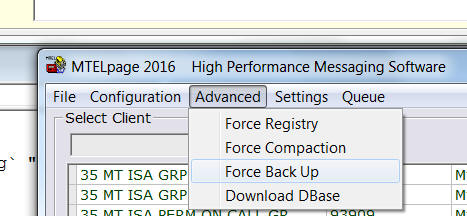

Using MTELPage Client C99 perform a Force Back Up from the menu.



This will create the new table.

However it will produce an error as it can not find the table to delete the old records. Check the Client Logs tab to see the result.



Now simply click on the menu item Force Compaction and it should complete successfully.

Restart MTELPage and there should be no errors.





4/4/2016

Click here to download MTELPage 2016 V4.3 (444)     MTELDbase 2016 V4.0 (46)



This is a minor release.

Fixes:

1. Periodical booked is now working correctly again.

New Functions:

1. Periodical Delete button added. Select the record and hit Delete button.
2. Added SITS Command
3. Added INFO Command
4. Added DBAS Command
5. Improved USR ACK display
6. Added virtual picocells
7. Backup only done by c99 client
8. Periodical to Booked only done by c99 client

15/3/2016

Click here to download MTELDbase 2016 V4.0 (44)



Password added back in

empty Groups and Contacts has been tested.





14/3/2016

Click here to download MTELPage 2016 V4.3 (438)



Click here to download MTELDbase 2016 V4.0 (42)



This is a medium release. The main reason for this release is to fix minor bugs from the last release and introduce forward WBB Updates to MTELPage.



Fixes:

1. Periodical booked is now working correctly again.
2. Periodical Booking of Group messages is now working
3. Periodical Delete button added. Select the record and hit Delete button.
4. Logging of periodical functions eg add records and deleting them.
5. Added Delete ALL Booked messages button.
6. Fixed Redirect Button

New Features:

1. Improved USR ACK display
2. Enter message display returns to the same size as it was last left in between different screens.
3. Enter Message returns to the same size as it was last used when restarted.
4. Site Status:  WBB Updates from the Gateway sent to Enter Message screen. eg. Site is OFFLINE.

22/10/2015

Click here to download MSDATLST_OCX

Click here to download MSDATLST_DEP



12/10/2015

Click here to download MTELPage 2015 V4.2 (431)

This is a medium release. The main reason for this release is to enable messaging to the Direct Host for WBB picocell sites. MTELPage will recognise additional responses from the Direct Host and redirect messages on failures.

The second feature is the addition of the User Acknowledgement window which displays acknowledgements from users running the MConnect APP.

There are several minor aesthetic changes as well.

1. Fixed history archive
2. Fixed escape key not working in message status
3. Fixed large groups in last message
4. Added WBB new status messages from DirectHost
5. Log windows now resizable
6. Fixed History List where a field has not been selected. Does not exit History. Allows field changes on searching without exiting.
7. Send Message frame has been changed. The info and group list boxes are larger.
8. Added ReloadMainDBase to the startup configuration which removes the timer from reloading the default database into the client list.
9. Changed Automated testing. Added a start up setting AutomatedTesting which enables the client. The default is false.

   a.    WBB sites are now in the list.

   b.    WBB sites can be sent a test.

   c.    Failed sites are retested one every hour until repaired.

   d.    Oldest failed test to a site is retested, therefore cycles through all failed sites.



10. Added USRACK window. This displays the number of users who have acknowledged the alert. The window is active for ten minutes after an alert. It will automatically disappear after this time or if a CAD user double clicks the window. To make the window appear again, go to the Configuration menu and select Show USRACK. There is also a command button on the right called USRACK which will do the same function.











11/8/2014

Click here to download MTELpage 2014 V4.0 (412)

This is a minor release.

1. Fixed Booked Messages now looks for associated messages.
2. Added Esc key back to Current Message Status introduced last version.
3. Added new Key TextFileBackup. This is added to the Registry on startup. A backup is performed immediately on startup and then the date and time is saved back to this registry value. Backups are performed every 7 days.
4. Added WBB_CANCEL command and WBB_OFFLine commands to the MTELRelay responses back to MTELPage. This is a future command to be introduced with WBB Direct. When MTELPage detects the WBB_CANCEL it will redirect the message to the MTELQue. When the WBB_OFFLine is detected the message fails immediately as the picocell is not available.
5. Fixed MTELPage Backup. Default backup was \backup it is now  \logs\backup

5/6/2014

Click here to download MTELpage 2014 V4.0 (410)

NOTE: Only compatible with MTELRelay V1.0(49) and above



This is a minor release.



1. Fixed Booked messages failing to check for associated networks when added to the queue.
2. Added back the Successful/Failed Message Status frame. At the completion of all the messages in the queue the Message Status frame appears indicating if the message was successful or not. If not a failure indication is also added to the record.

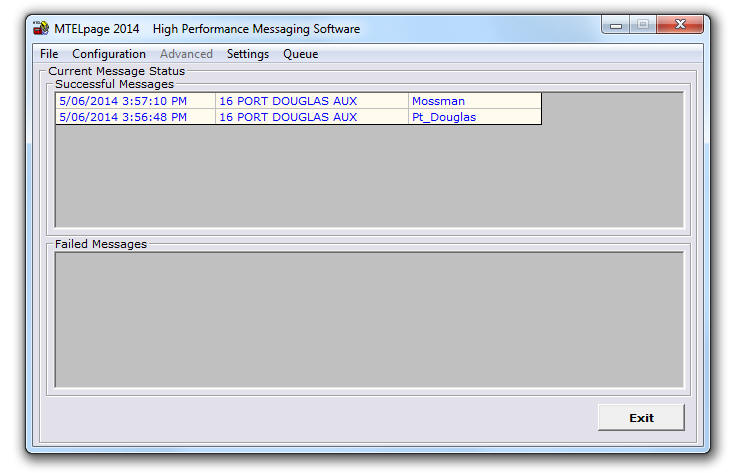

The image below is of a messages sent to Port Douglas auxiliaries successfully to locations Mossman and Pt Douglas picocells.

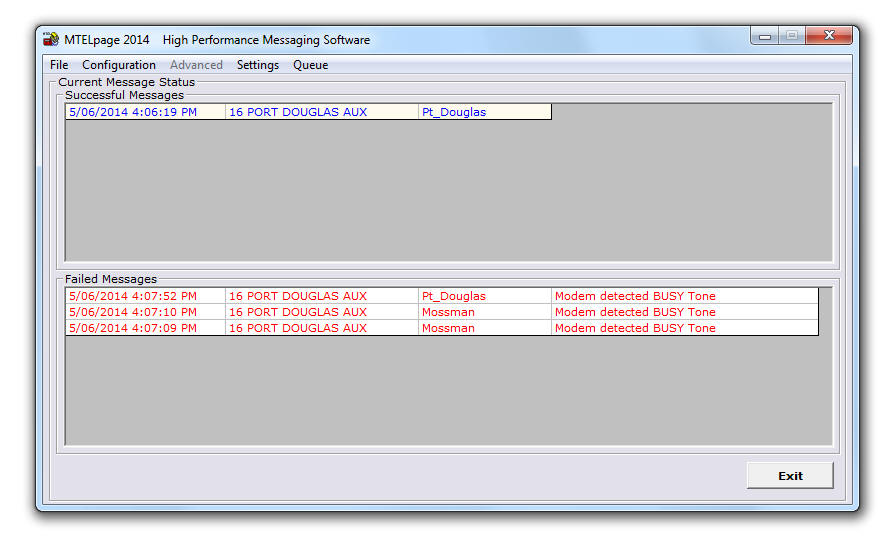

The image below is of a messages sent to Port Douglas auxiliaries successfully to Pt Douglas picocell but failed on Mossman picocell as the modem was busy.







31/3/2014

Click here to download MTELpage 2014 V4.0 (409)

NOTE: Only compatible with MTELRelay V1.0(49) and above



This is a minor release.

1. Changed R01 records to create associated messages if required. This is setting up MTELPage to send messages to the MDS as the primary route. This mainly affects picocells on WBB where there is a mixture of picocells on WBB and on normal PSTN/ISDN.

2. Change Periodical booked. When activate button is clicked it gives a message that the messge have been added to the booked queue. The application then returns to the main screen.

3. Added 5 minutes to the Select Time when first enter Booked messages.



24/2/2014

Click here to download MTELpage 2014 V4.0 (406)

NOTE: Only compatible with MTELRelay V1.0(49) and above



This is a minor release.

1. Improved logging messages to MTELRelay and MTELQue. Added message id to all logging.

2. Added Relay log to backup list. There are now three log files backed up.

3. Introduced new command returns from MTELRelay which identifies the reason for not transferring messages to PagerDEC.

4. Messages from the relay not intended for the MTELPage Client are ignored. The message id must be in the queue.



24/2/2014

            Click here to download MTELpage 2014 V4.0 (404)

This is a minor release.

1. fixed associated groups when sending messages to MTELRelay



8/12/2013

            Click here to download MTELpage 2013 V4.0 (398)

This is a minor release.

1. fix display problems.
2. fixed problem sending large groups to MTELRelay. (SendComplete flag not set correctly)
3. fixed enter message display in a stretched window environment
4. window size stored in registry. one window size for all tabs
5. added delimiter testing in the message content. Checks for "|" and control characters.

20/11/2013

            Click here to download MTELpage 2013 V4.0 (392)

This is a MAJOR release.

1. Converted MTELPage to use MTELQue and MTELRelay
2. MTELQue is back up to MTELRelay
3. All inter application communication is TCP
4. Clean up of menus



8/11/2012

            Click here to download MTELpage 2012 V3.5 (357)

This is a minor release.

1. fixed UCASE conversion when using key input on the client name in Enter Message.
2. added modem commands to relay log.

5/11/2012

This is a minor release.

1. Changed the way the Relay is alerted. Multiple network alerts can now processed in one message. If there is a message for more than one network required to be processed by the relay, MTELPage sends an alert for each network. The Relay then selects records for that network from the database. This is done before the alerts are sent to the MTELserves.
2. Found a bug where there were more networks then servers. The messages for unassigned networks were left in the queue and the servers only selected these if other messages were generated and alerts were sent to the servers. To fix this, the MTELpage Client which created the messages checks the queue every 15 seconds for messages unassigned to a MTELserve Client. The warnings are only generated if all the servers are idle and there are messages in the queue.
3. Changed Booked and Periodical buttons to disappear if the Client list is clicked when entering a message. Users thought that deselecting pagers from the group and then booking the subset list would correctly rebuild the list when recalled from Booked. A booked group is unable to store the deselected clients list so the buttons have been removed in this situation.
4. Mobiles currently have low priority through the Relay. The same priority as NON-Turnout pager messages.
5. Cleaned up the menus to remove little used features.
6. Cleaned up queue display for messages unassigned to server clients.
7. Speed up the Queue display max of 15 entries viewable.

26/5/2012

            Click here to download MTELpage 2012 V3.5 (354)

This is a minor release.

1. Found problem with moving from Select Client in minimised Decoder View to OAD display. On exit frame size was incorrect so application bombed out. Now the resize is ignored and normal processing resumes.

25/5/2012

            Click here to download MTELpage 2012 V3.5 (353) 6:00pm

This is a minor release.

1. Found problem with expired messages. New code was not checking Relay messages. In this version bad Relay messages stuck in the queue will be deleted 1 hour after the expiry date.

25/5/2012

            Click here to download MTELpage 2012 V3.5 (352)

This is a major release.

1. Improved the Client Log response and redraw of all frames and grids.
2. Changed the queue DELETE SQL statements to check for the presence of LOCK
3. Improved the RELAY logging information and added more states including PDEC QUE FULL
4. Improved the Queue insert time on very large groups.
5. Only 15 of the total in the queue are displayed. This improves the response of the application. The displayed 15 are messages with activity or a random selection of idle messages.
6. Priority has been changed from 1000 increments a second to 10. See the section on Priority for more information on this feature.
7. LastMessage was limited to 50 messages. Now re-dimensioned on the fly.
8. LastMessage processing improved.

24/5/2012

            Click here to download MTELpage 2012 V3.5 (351)

7/3/2012

This is the bug fix for MTELPage 2012

5/3/2012

This is the upgrade for MTELPage 2012

  4/3/2011

This is the upgrade for Springhill to MTELPage 2011

20/9/2011

MTELPage V3.40 (340)

This version enables development code to determine if the current application is to run under development defines. Needs development.txt in the c:\mtelsys to activate the defines to locate the mtelsys database.

Fixed OAD frame visibility control. OAD frame only appears when selected by the user.

Changed output format of the OAD list.



MTELPage V3.40 (339)

This version removes the current path control from the startup.

19/9/2011

MTELPage V3.40 (338)

Off Air Decoder Changes

This version changes the OAD display from a "connection to a database" to a local memory model. On each request to look at the OAD database, an array of the OAD list is created instead of a recordset attached to the database. This means the database is free to be processed by other clients for back-up purposes. The previous version interfered with the history and back up processing by maintaining an open connection to the database.

The new OAD model has a changed display as it is now a text box instead of the previous data grid. The new list is easier to view as it now contains the full information with the assistance of scroll bars.



10/2/2010

Click here to download MTELserve 5. V3.3.(457)

This is the final release for Toowoomba Firecom. It changes the kilomux link to run capcodes instead of pager numbers. It also adds to the record a baud rate field to set the correct pager baud rate to either 512 or 1200. This version sends two messages only i.e. a single repeat.

It requires the MTELsys registry entry "PETCapcode" to be True.

MTELPage Patch 2010-1

This enables the server no 5 to be monitored by MTELpage. If server 5 has trouble with the link MTELpage will be advised through the watchdog. The patch is to be run on all CAD stations running MTELpage 2009 only under direct consultation with MTEL.

MTELPage V3.30 (287)

Capcode and Baud rate

This version enables MTELpage to send capcode, pager number and baud rate to the queue. Previously these fields were not populated into the queue record although the fields existed in the local contacts database. Server No 5 then takes this information and formats a message to send capcode and baud rate in a dedicated field as a special PET record. This is only used on Kilomux dedicated links, as the database is now not present on the Access Card in the picocell end of the link.

Click here to download MTELPage 2009 V3.30 Build 282 (Zip 300k)

This is the beta 2009 release for evaluation in Toowoomba Firecom (zipped).

Click here to download MTELPage 2009 V3.30 Build 282 (2.7 Mbytes)

This is the beta 2009 release for evaluation in Toowoomba Firecom.

MTELPage Patch 2009-1

This enables the TCP Alert on MTELpage.

MTELPage Patch 2008-1

This changes the max no of servers to 1 for MTELpage QAS users.

Click here to download MTELPage 2007 V237 (zip 300kBytes)

This is the official release for VisiCAD evaluation.

It is currently installed in

Springhill, Kawana, and Southport Firecom Centres.



Click here to download MTELPage 2007 Wizard V1.1 (13)

This is the MTELpage configuration wizard. Currently used for settings up QFRS Com Centres.

Click here to download MTELDatabase V3.1 (38)

This version updates the existing Client list ready for MTELpage 2007.

It also allows for groups larger than 20.

The turnout selection is now a checkbox rather than a text box.

25-1-2008

Latest Bug fix: "New" button in Groups was clearing the previous group.



Click here to download PBooked 2003     Click here to download Que 2003

Warning: These databases are not official releases.

[ Home ] [ Up ]
Copyright © 2012-2021 MTEL Communications Pty Ltd
Last modified: 01-Jun-2022
