WhispirGate Client

1.1       Focus

This instruction is specific to the WhispirGate 2021 application.  This application operates in the MDS suite to deliver SMS messages to Telstra Whispir API.

1.2       Overview

The WhispirGate application provides connection to Telstra's Whispir API for the purpose of sending SMS messages to 3G/4G/5G devices.

Changes to the Client include;

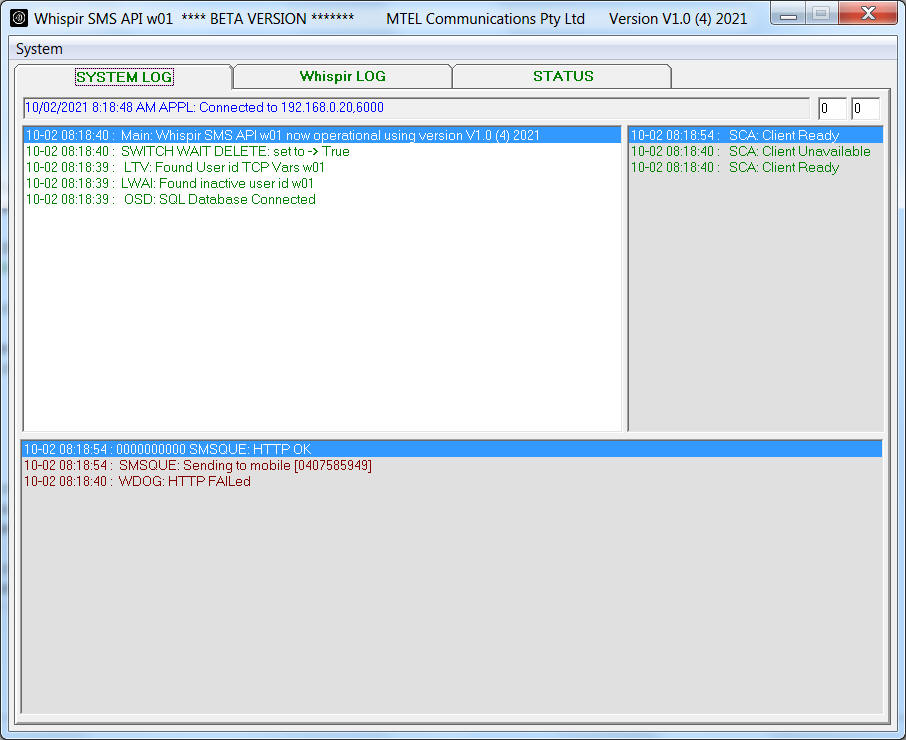

1. The Client has two small text boxes on the top right which indicate the position of the input and output pointers in the queue. The left is the input pointer and the current queue size is 101.

2. The textbox to the left of these is the information on the connection to MTELHub.

3. The large left box is the log of the queue processing

4. The box to the right of the queue processing is the Client control log.

5. The box to the bottom of the form is a summary log of the communication to Whispir.

1.3        Setting up the WhispirGate application MDS SQL tables

The new Client requires changes to three tables to make it operate successfully.

MDSModule table

The latest WhispirGate Client uses a new module type.

Create a group with a new Title field called Whispir.

The client ID is W**

MDSClient table

The WhispirGate communicates using TCP port running a TLS connection to the API.

The settings for this are in the Client Table. Note there are new PortClass and PortType values and the Destination Field is not used.

1. Set PortClass to RESTAPI

2. Set PortType to RESTIP

3. Set HostAddress and HostPort

4. Set OutputType to RESTIP

1. Set the SETTINGS string parameter in the StartUp Field to SWITCHTYPE=WAITDELETE

MDSClientConfig table

The WhispirGate communicates using TCP port running a TLS connection to the API.

The settings for the TLS connection are in this table. (Note the Key and Password are examples only)

SERVER_API	https://api.au.whispir.com
API_KEY	JZixJWVsThwoapMgPJnFEskHFwJPOkjdo
API_PASSWORD	Basic bpXaGlzcGlyMjA
SERVER_API_MESSAGES	/messages
SERVER_API_GET_MESS_SUMMARY	application/vnd.whispir.message-v1+json
SERVER_CONTENT_MESSAGE	/messagestatus?view=summary
SERVER_CONTENT_MESSAGE_STATUS	application/vnd.whispir.messagestatus-v1+json
SERVER_TLS_PORT	443
CONNECTION_TIMEOUT	3000

1.4        Operation of the WhispirGate SMS application

Sending Messages:

On receipt of messages from the Switch, they are entered into a queue. The queue will hold 100 messages and cycles through the array.

There is a queuing timer which activates and gets the first message in the queue, then searches the queue for messages that are identical. It then builds a mobile number list of these same messages and on completion assembles a JSON packet as a payload for the communication to the Whispir API.

The REST class then delivers the message using the table above as a REST POST packet. The response to the POST is then received and deconstructed to get the MessageID. This ID is then stored in memory for future processing.

The response is then returned to the MDS as a successful POST. The success only indicates that the API has received the POST and correctly handled the payload. Unsuccessful POST commands are sent to the MDS as a POST failure. The MDS will then redirect the message to the backup network.

The application will run a watchdog which communicates to the API every period to check the connection. If this fails the Client makes itself unavailable until the next watchdog period and another test is performed. The client remains unavailable until it can successfully send a REST command to the API.

Deprecating the Registry:

The Registry is now deprecated in this application. The MDS clients will all move from the registry for the storage of the TCP information and form position.
