1.    Card Descriptions

The picocell is a modular system and uses a set of cards to perform the overall task of paging. Each card performs a dedicated function such as alarming, power supply, encoding, protocol conversion, database maintenance, serial communication and radio frequency generation. Most cards pass information over a synchronous system bus to transmit messages and share system parameters.

Each card has a number preceded with PC (for picocell).

  • PC201 DC Supply Card
  • PC203 Access Card
  • PC204 Encoder Card
  • PC205 RF Monitor Card
  • PC208 AC Power Supply
  • PC2014 Back Plane
  • PC2015 Modem Card
  • PC2016 3 Channel Alarm Card
  • PC2019 FSK Modem Card
  • PC2022 AD/DC Protection
  • PC2032 ISDN Interface
  • PC2060 WBB Interface and Paging Queue
  • Simulcast Station Controller

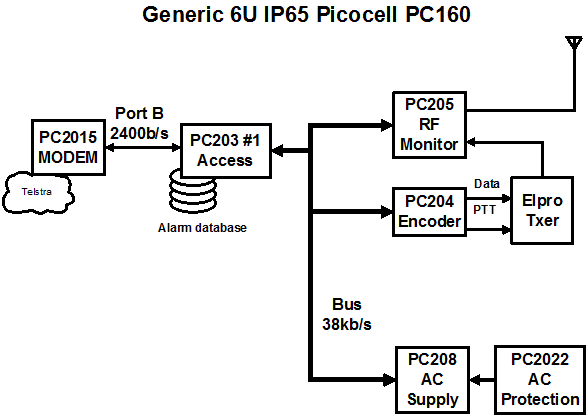

The diagram below shows the generic picocell product. There are many variations though these cards form the basis for a system.
